ELECTRICAL SWITCHES SAFETY COMAND DEVICES I110RP / ROPE PULL SWITCH
Price:
$594.00
Tax included
Quantity
SWITCHES SICK SAFETY COMAND DEVICES I110RP / ROPE PULL SWITCH
FEATURES
| Number of positive action N/C contacts | 2 |
| Number of N/O contacts | 2 |
| Actuation force (deflection) | ≤ 125 N (300 mm) |
| Actuation frequency | ≤ 3,600 /h |
| Actuation directions | 1 |
| Cord length | ≤ 30 m |
ELECTRICAL DATA
| Switching principle | Slow action switching element |
| Number of positive action N/C contacts | 2 |
| Number of N/O contacts | 2 |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 3 A (240 V AC) 2 A (24 V DC) |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,500 V |
| Short-circuit protection | T6 |
| Switching voltage | ≥ 5 V DC |
| Switching current (switching voltage) | ≥ 5 mA (5 V DC) |
MECHANICAL DATA

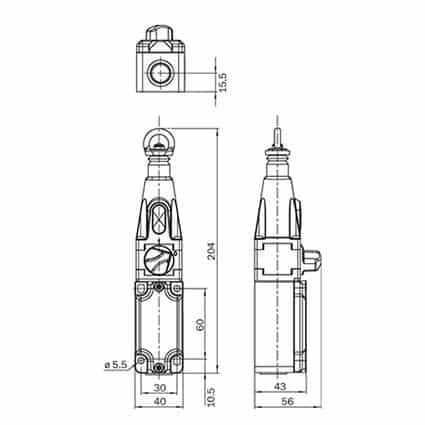

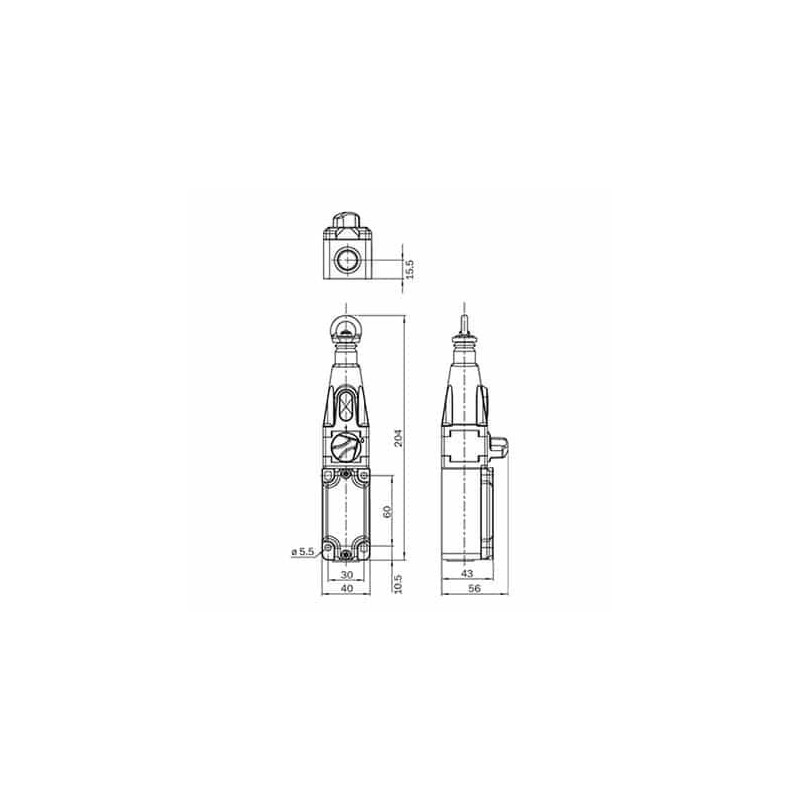

| Dimensions | 40 mm x 204 mm x 56 mm |
| Weight | 0.84 kg |
| Housing material | Zinc diecast |
| Surface treatment | Varnished |
| Mechanical life | 1 x 106 switching cycles |
AMBIENT DATA
| Enclosure rating | IP66 (IEC 60529) |
| Ambient operating temperature | –25 °C ... +80 °C |
| Storage temperature | –25 °C ... +80 °C |
| Cross Reference | 6025077 |
|---|
